Taming a big boy’s Marshall Amp

Marshall 8080
Marshall vs100
Marshall JCM 900 combo
Marshall JCM 900 head 5881 tube version
Marshall JCM 900 EL34 version
Marshall JTM 30
Marshall JCM 2000 TSL601
Marshall Class 5
Marshall 8040
Marshall VS102R
Marshall JMP 2200
Marshall JCM 800
Marshall ministack
Marshall 1987x
Marshall 5005 (lead 12 no reverb)
Marshall 5005 (bass)
Marshall JTM45
Marshall DSL15H
Marshall 2201

Those are all the Marshall amps (heads and combos) I’ve owned over the past 20 years, I’ve sold some of them and I must have around 8 or 9 at my home studio now, I’m only listing them so you have an idea of what my Amp Journey has been.

Once you enter the tube/valve world you don’t look back (sometimes you do :p) but this tube/valve world is complex, confusing, expensive, loud and heavy!!

Let’s talk about the Loud characteristic most of these amps posses, you can buy a 5 watt tube amp and it’ll still blow your pants off, there’s a number of reasons this happens, the speaker efficiency also plays a huge part of this, but let’s stick to the amp.

The guitar signal moves through the inside of the amp getting powered up and ready to come out of the speaker ready for you to enjoy, on this journey the signal acquires distortion, volume and EQ, now… valve amps have a “power section” which is where the famous power tubes come into play, this is where things get out of control on tube amps (mostly vintage jmp styles with no master volume) because this stage not only gets you the volume but it also gives you more distortion and a specific tone that you might be after.

Some Marshalls will have a Master Volume, and this controls the amount of voltage that gets routed to the power tubes, it also allows you to play with distortion at “bedroom levels”, but the most exciting Marshalls to play (plexi style) often don’t have a master volume…. what does this mean? Well… it means that you don’t have a gain control, so all the distortion comes from the volume, which means… you need a ridiculous amount of volume to get the distortion we all look for, this is THE distortion.. Page, Hendrix, AC/DC, etc. This is what we all want to hear from a Marshall.

So… why am I writing this? Because I’ve found ways to obtain this sound without going deaf, and believe me when I say…. these amps are loud! I wasn’t around in the 70s so I’m not sure how loud these bands would play in pubs, but it would’ve been deafening loud.

What you need is an attenuator, to attenuate the signal that the amp spits out before it hits the speakers, now… this is critical to remember. The Master Volume controls the voltage to the Power Tubes but the attenuator, lets the amplifier be and it attenuates the audio signal that goes to the speaker after it leaves the amp, so the amp tone is genuine… everything you want it to be. And why do we want this? Because power tubes are a component of the sound too so we need to let them be a part of the tone. The attenuator is a genius invention and gives us the ability to run these genuine marshall tones at bedroom levels

There are a lot of attenuator brands out there but I’m going to talk about the one I have but also give some pointers of what to look out for.

  • Don’t buy an L-pad attenuator. These can be found for like 30 bucks on ebay, they do work but they also catch fire quite easily if you overload them. Trust me.. I built one and once I tried to use it with a 100W amp and smoke started coming out even though it was for 100W. If you do use an L-pad attenuator get at least double the rating of the amp
  • Don’t buy attenuators that only work with one speaker load combination, THD hotplates, Palmer and some others offer attenuators at decent prices (£250) but they are designed for 4, 8 or 16 ohms, so you’ll need a new piece of equipment if you ever change your speaker combination.

I bought the Two Notes Reload, why? Because I found it at a good price and it has an ohm load selector along with other things, it’s a great piece of gear, it also has cab simulation and some other fancy stuff that I’ll never use.

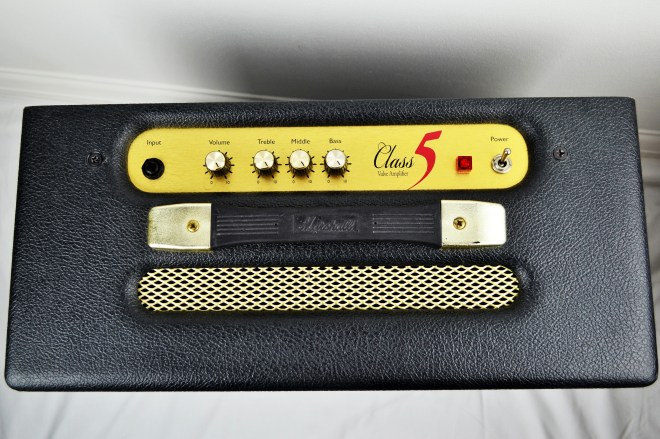

Marshall Class 5

The little beast.

I’ve always wanted one of these boutique looking Marshalls, I’ve had JCM 900, JTM30, etc. you name it. But this one just looks awesome.

Don’t be fooled by the fact that it’s only a 5 watt amp, this thing can scream! I’ve used in on rehearsals and on pub gigs, and it held up pretty good without any PA assistance, I’m not sure why but it’s just too damn loud.

This is the first version they released which doesn’t have a master volume so it’s practically impossible to get a nice distortion without having your neighbours call the police, Marshall later released a 2nd version with an open back and a master volume which of course allows you to get a nice distortion at practice volume.

By the time I bought this beauty I was not aware of the existence of a 2nd version so I added a master volume my self to the back of the amp, it’s not the prettiest looking mod… but hey… it does the job.

This amp combined with any of my vintage Gibson SGs creates the classic AC/DC sound, great sustain loads of harmonics, the speaker is a “specially designed” Celestion G10-F, to my taste it sounds awesome, probably a Celestion Greenback will be the choice if I wish to swap the speakers, but for now I think this is one of my all time favourite amps.

_DSC7511 (2) _DSC7512 (2)
